Thermostat Blank: Why the Screen Went Dark
Thermostat blank? A dark screen means no power reaching it: dead batteries, a tripped HVAC breaker, the furnace switch or door switch, or a condensate float switch that shut the system down.
Checked against makers' and agencies' documents by Hum Drip Hiss · how pages are made · Updated
Vitals
- Trane: a blank thermostat display indicates no power to the thermostat.
- Honeywell's order: batteries first, then the breakers, the furnace power switch and the furnace door kill switch.
- Lennox suggests fresh AA or AAA batteries and replacing them once a year.
- A float switch tripped by a drain backup can cut system power, and the thermostat with it (Lennox).
- Reset a tripped HVAC breaker once; if it trips again, leave it off and call a technician.
- Lennox says most modern thermostats are built to last around 10 years.
Why is the thermostat blank?
Because no power is reaching it. Lennox lists the usual culprits as dead batteries, a tripped circuit breaker, a blown fuse, a dirty air filter, or a float switch that shut the system down after a drain backup. Most of these are quick to rule out from the hallway, the breaker panel and the furnace closet.
Likely causes, most common first:
- Dead or weak batteries (battery-powered or battery-backup models).
- A tripped HVAC breaker or a furnace switch turned off.
- The furnace door panel not seated, so its door switch keeps power off.
- A condensate float switch tripped by water in the pan or line.
- A blown low-voltage fuse, a failed transformer or a loose wire inside the equipment (technician work).
If the screen works but the system won't start, see AC not turning on instead.
Does the thermostat use batteries or a C-wire?
It may use either, or both. Lennox explains that hardwired thermostats draw steady power through a C-wire, or common wire, from a transformer in the HVAC equipment, while battery models run on their own. Many wired models also hold batteries as backup.
Honeywell's test is useful: if the thermostat is battery powered, replace the batteries; if it is common-wired, try powering it with batteries. If batteries bring a wired thermostat back, the problem is upstream, at the breaker, the furnace switch or the door switch. If even fresh batteries won't light it, Honeywell says you may need a technician. Some Honeywell Lyric models without a C-wire put the screen to sleep to save power, so tap it once before assuming it has failed.
To change batteries, pull the thermostat face straight off its base as the maker's manual shows, swap in fresh AA or AAA cells, and wipe the contacts with a dry cloth if they look corroded. Leave the wires on the base alone; Trane advises against fiddling with the wires unless you are a technician or electrician.
Has the furnace lost power?
Often, yes: the thermostat's power comes from the furnace or air handler, so anything that cuts the equipment also blanks a wired thermostat. Trane notes the thermostat is connected to the same breaker as the HVAC system.
Safe checks, in order:
- At the breaker panel, open the door and look for a furnace, air handler or HVAC breaker sitting in the middle or OFF position. Don't remove the panel cover.
- Reset that breaker once by pushing it fully OFF, then ON. Carrier says if the breaker trips again, turn it off and have a professional find the fault.
- Find the furnace switch near the unit; Carrier says it looks like a light switch. Make sure it is ON.
- Check that the furnace door panel is pushed fully into place. Trane explains that a blower door switch cuts power when the door is off.
Leave the burner compartment and the equipment's electrical box closed. The full sequence, from thermostat to outdoor unit, is on safe checks before you call.
Could a condensate float switch be the cause?
Yes, especially in cooling season. Lennox describes standing water in the drain line triggering a float switch that cuts system power to prevent water damage, and suggests walking to the indoor unit to look for pooling water. Carrier's thermostat page carries the same advice from a contractor: check the drain pan when a heat pump's thermostat goes blank.
If the pan or the small tank of a condensate pump is full, shut the system off, clear the water, and flush the drain line as described on AC leaking water inside. Never tape, bypass or remove the float switch; once the water drops, it normally lets power through again. A drain that keeps backing up often travels with ice, covered on frozen AC coil.
What if the screen stays blank?
Then the fault is likely in the low-voltage side: a blown fuse on the control board, a failed transformer, or a broken wire, all of which sit inside the equipment. Lennox notes a transformer can fail from a power surge or wear and cut off the thermostat entirely, and that repeated fuse failures signal something else is wrong. Those parts belong to a licensed technician.
Stop and call if
- The HVAC breaker trips again after one reset.
- You smell burning plastic or see scorch marks at the thermostat, furnace or breaker.
- Fresh batteries, the breaker, the furnace switch and the door all check out and the screen is still dark.
- The float switch keeps cutting power after the drain was cleared.
- A wired thermostat needs its wiring touched to come back.
- If you're unsure, stop and call a licensed HVAC technician.
When does the thermostat need replacing?
When power checks out at the equipment and the thermostat itself stays dark, or when an older unit keeps failing. Lennox says most modern thermostats are built to last around 10 years, and Trane suggests that if you have tried the other troubleshooting and the thermostat is older, it may be time to replace it.
A battery-only thermostat can often be swapped by a homeowner by following the maker's instructions exactly. If the new model needs a C-wire, has more wires than the old one, controls a heat pump, or the wiring is unclear at all, have a technician do it. Heat pump owners should read heat pump defrost mode and emergency heat for what AUX and EM labels on the new screen mean, and the stop-and-call list for signs that are not thermostat problems at all.
Tell the technician
Thermostat type
Brand and model, battery or wired, and whether batteries bring it back.
Power checks done
Breaker reset once or not, furnace switch position, door panel seated.
Water at the unit
Any water in the pan or pump tank, and whether you cleared the drain.
Timing
When the screen went dark and anything that happened just before, such as a storm or power outage.
What the sources say
- 1/yearLennox's battery replacement habitLennox
- ~10 yearshow long most modern thermostats are built to lastLennox
- 60 secondswait before restoring power when rebooting a thermostatCarrier
- 1 resetfor a tripped HVAC breaker before callingCarrier

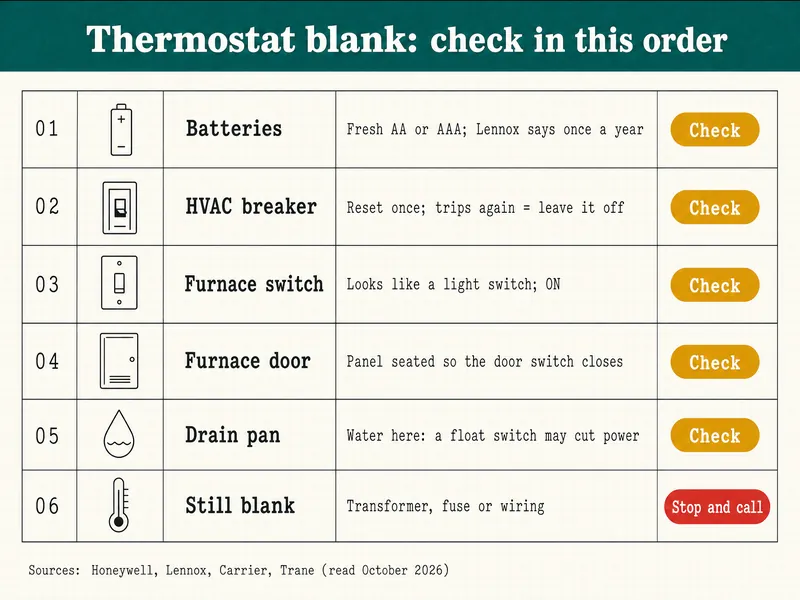

| Check | What it tells you | Homeowner step | Call when |
|---|---|---|---|
| Batteries | Dead cells or a sleeping screen | Fresh AA or AAA, per the manual | Fresh batteries change nothing |
| HVAC breaker | Power cut to the equipment | Reset once | It trips again |
| Furnace switch | Switched off by mistake | Turn it ON | It's on and still no power |
| Door panel | Door switch open | Seat the panel | Panel is seated, still dark |
| Drain pan or pump | Float switch tripped | Clear water, flush the line | It trips again after clearing |
| Transformer or fuse | Low-voltage failure | None | Always |
A battery-powered thermostat can be a homeowner swap when the maker's instructions are followed; if the wiring is unclear, a technician should fit it.
Case notes
Based on Honeywell Home's blank-display and Lyric support pages, Lennox's no-power page, Trane's thermostat and blinking-light pages, and Carrier's thermostat and AC-not-turning-on pages, read in October 2026. Not included: any work on thermostat or equipment wiring, replacing control-board fuses or transformers, and prices.
Asked at intake
Why did my thermostat go blank after a power outage?
A surge or outage can trip the HVAC breaker or, less often, damage the transformer. Carrier suggests powering the system off for 60 seconds and back on after power irregularities; if it stays dark, check the breaker once and call if needed.
Can a dirty filter make a thermostat go blank?
Lennox lists a dirty air filter among the common culprits. A clogged filter can also lead to a frozen coil and a full drain pan, which can trip the float switch.
Why is my thermostat blank but the furnace still runs?
The thermostat itself, its batteries or its connection to the base is the likely problem. Reseat the face on its base and try fresh batteries before calling.
Does a blank thermostat mean the heat or AC is broken?
Not usually. Most blank screens come from batteries, a breaker, a switch or a float switch, none of which mean the equipment has failed.
Should I flip the breaker off and on repeatedly to wake it up?
No. Reset a tripped HVAC breaker once; if it trips again, leave it off and call a technician.
How do I know if my thermostat has a C-wire?
Lennox describes it as the common wire that supplies continuous power from the HVAC unit. The maker's manual shows the terminal label; if checking means handling wires, let a technician look.
Why does my thermostat go blank only in summer?
A cooling-season pattern points to the condensate drain: water backs up, the float switch opens, and the thermostat loses power with the system.
